4 Series B MSO Mixed Signal Oscilloscope

The versatile 4 Series B MSO has the performance to address tough design challenges and a user interface that works the way you expect. With a new upgraded processor system, it delivers accurate measurements faster with an outstanding range of analysis tools.



What’s new in the 4 Series B

• A new processor system for
• 2X more responsive user interface
• Faster analysis
• Faster data transfers
• New display technology for greater contrast and wider viewing angle
• New annotations indicate key reference levels and times for measurements

• Full support for e*Scope browser-based remote access and control
• 2 new USB 3 host interfaces provide faster data transfers
• Waveform histograms for greater insight into noise and jitter

Big HD display and award-winning user interface

With the same made-for-touch user interface technology as the award-winning 5 Series in a compact package, the 4 Series B MSO sets a new expectation of how a scope should work.

• 13.3-inch high-contrast HD display
• 6.1-inch (15.5 cm) deep bench-friendly footprint

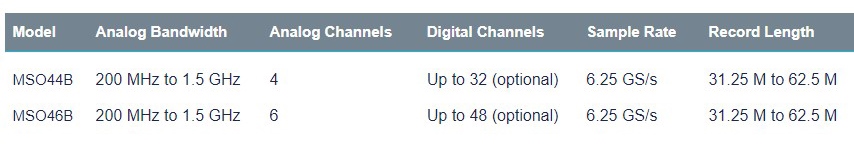

Precise measurements and up to 6 super-flexible channels

• Fine signal detail and accurate measurements on all channels
• 12-bit vertical resolution (16-bit in high res mode)
• 6.25 GS/s on all analog and digital channels
• Up to 62.5 Mpoints record length
• Any channel can show a waveform, RF spectrum, or both
• Any input can be used to view eight digital channels by connecting a logic probe

Outstanding analysis

• Discover the capability the 4 Series B can bring to your bench

  • Broad range of smart TekVPI probes
  • Multi-channel spectrum analysis
  • Up to 48 digital logic inputs
  • Over 25 available serial protocols
  • Built-in arbitrary/function generator
  • AC/DC power supply measurements
  • Automated double pulse testing
  • 3-Phase power analysis
  • Field upgradeable -- get the tools you need now or add them later, without having to return the instrument
